Variable Speed DC Gear Motor

Title:

Z4-132-2 Variable Speed DC Gear Motor

Brief Introduction

Engineered for seamless energy conversion, this industrial DC motor Z4-132-2 features optimized armature winding and commutation systems to ensure reliable power transfer between electrical and mechanical domains.

Core Commutation Technologies:

Insulated Commutator Architecture: Mica-isolated copper bars withstand continuous arcing while maintaining dielectric integrity at 200% overload currents.

Slot-Aligned Winding: Precisely positioned lap/simplex windings maximize EMF generation with neutral-axis brush placement, minimizing short-circuit losses.

Odd-Slot Wave Winding: Exclusive odd-numbered commutator configuration eliminates closed-loop failures in permanent magnet applications through asymmetrical connectivity.

Dynamic Neutral Calibration: Laser-aligned brush holders maintain optimal commutation timing under thermal expansion.

Critical implementations include:
• Single-turn heavy gauge conductors for reduced eddy currents in high-current operations
• Multi-turn fractional-pitch coils enhancing torque smoothness in precision drives
• Press-fit commutator construction preventing bar displacement at 10,000 RPM
• Accessible undercutting ports for mica maintenance

The 132-frame motor executes:

Bidirectional power flow (motoring/generating) with <5% harmonic distortion

Real-time EMF monitoring via test terminals

Thermally stable varnishes preventing inter-turn shorts

Rigid shaft grounding to dissipate static charges

Validated for traction and servo applications, this variable speed DC gear motor achieves conversion efficiency through synchronized winding-commutator geometry. All armature assemblies undergo impulse testing to verify slot-to-bar alignment prior to dynamic balancing.

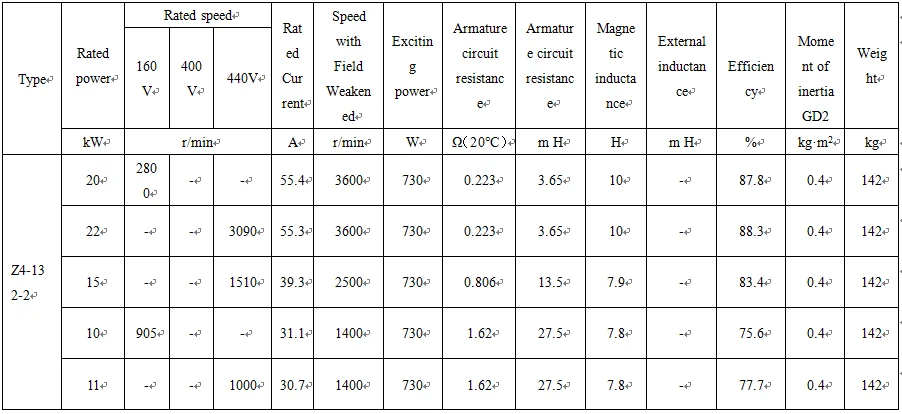

Main Technical Parameters

Production Details

Frame

• Compact and robust iron casting frame

• Universal IEC and NEMA installation dimensions available

• Customizable outlook and dimensions

---

Armature

• 99.9% pure copper bar for armature to ensure the output power and efficiency

• Excellent insulation system with 5 more processing flows

• All the copper bars are fitted in by handwork to ensure all slots are full and avoid any possible flaw.

---

Winding:

• All windings are made of pure copper to assure induction efficiency

---

Testing

• All motors must pass the piece testing before painting and packaging

• Type tests will be regularly performed for each series, more often for new developed series and variants.

---

Package and delivery

• All motors will be packaged well before delivery

• Plastic cover inside, vacuum tin foil outer and then solid wood box

---



Applications

Cement

Oil gas

Steel

Sugar

CHOOSE SIMO, CHOOSE QUALITY!
