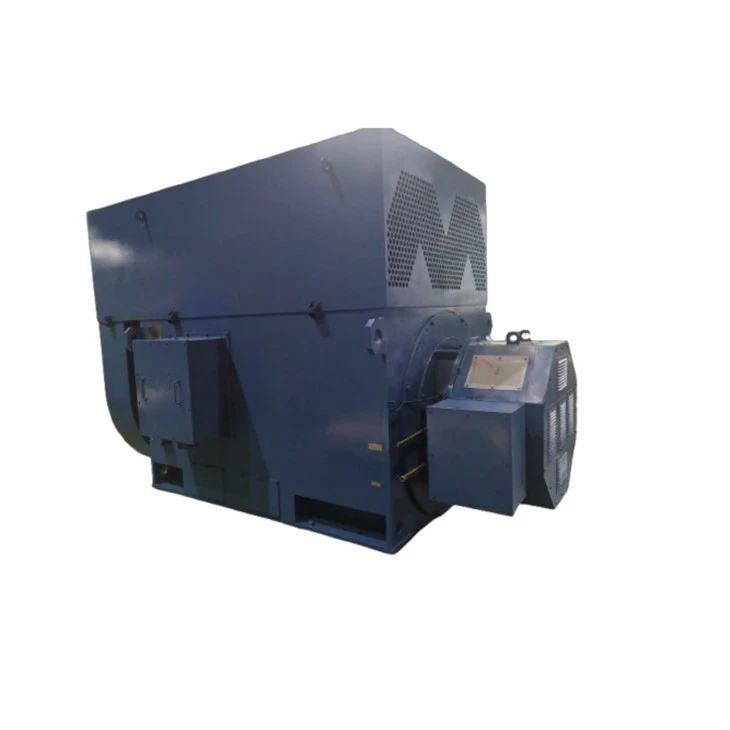

YRKK 710-16 Three-phase Asynchronous 16 Pole Motor 1000kw 50Hz

Brief Introduction

As a robust 16 pole motor, the YRKK series high‑voltage wound‑rotor three‑phase asynchronous motor is engineered and produced by Xi'an SIMO Motor Co., Ltd. Built for demanding heavy‑duty applications that demand high starting torque and speed adjustability, this motor adopts IC611 air‑to‑air cooling design for steady S1 continuous‑duty performance. It serves core industries including metallurgy, mining, cement, chemical processing and water conservancy for critical industrial driving tasks.

Featuring classic wound‑rotor construction, the motor connects external variable resistance into the rotor circuit during start‑up. This setup cuts down inrush starting current and raises starting torque, mitigating grid disturbance. It is ideal for heavy‑load start‑up equipment such as ball mills, crushers, large fans and industrial pumps. Users must never short‑circuit rotor windings directly; external rotor resistance is mandatory for safe motor start‑up.

The nameplate‑listed YRKK710‑16 acts as a representative 16 pole motor. Rated at 1000 kW, 50 Hz and 10000 V stator voltage, it runs at 371 r/min. With IP55 protection grade, it resists dust ingress and water splashes. Class‑H insulation supports 155 ℃ thermal class for superior heat resistance and extended service lifespan. Both stator and rotor adopt Y connection. It reaches 93.4 % efficiency with 0.7 power factor under rated condition, delivering noticeable energy‑saving benefits.

In mechanical aspects, standard rolling bearings are fitted on both drive‑end and non‑drive‑end sides. Optional compound‑lubricated sliding bearings are available. For sliding‑bearing configurations, external circulating lubrication oil supply shall be confirmed before commissioning. For variants with air‑water coolers, circulating cooling water shall be supplied as per nameplate specifications. Precise axial‑center alignment is required during coupling installation to avoid excessive vibration and mechanical failure. Its operating ambient temperature spans ‑15 ℃ to 40 ℃, with maximum applicable altitude of 1000 m. This 1000 kW unit weighs 15580 kg, whose heavy‑duty frame suppresses vibration under long‑time continuous operation.

Manufactured complying with GB/T13957 standards and CE certification, every YRKK motor goes through complete factory acceptance testing prior to shipment to secure electrical and mechanical reliability. SIMO offers full‑range technical support covering installation, commissioning and on‑site maintenance. As a proven and cost‑effective 16 pole motor option, the YRKK series earns global client trust thanks to excellent load compatibility, stable running performance and reduced overall maintenance expenditure.

Main Technical Parameters

Production Details

Frame

• Box structure frame, easy for maintaining and installation

• Flexible for special installation dimensions

• Customizable outlook and dimensions

---

Stator

• 99.9% pure copper winding for stator to ensure the output power and efficiency

• Excellent insulation system with 5 more processing flows

• All the windings are fitted in by handwork to ensure all slots are full and avoid any possible winding flaw.

---

Rotor

• Aluminum casting rotor with high quality silicon steel rotor core to assure induction efficiency

• Copper bar rotor is available for YRKK motor

• Well and precisely machined shafts with good capacity of strength and toughness

---

Testing

• All motors must pass the piece testing before painting and packaging

• Type tests will be regularly performed for each series, more often for new developed series and variants.

---

Package and delivery

• All motors will be packaged well before delivery

• Plastic cover inside, vacuum tin foil outer and then solid wood box

---



Applications

Cement

Power Station

Water

Mining

CHOOSE SIMO, CHOOSE QUALITY!
