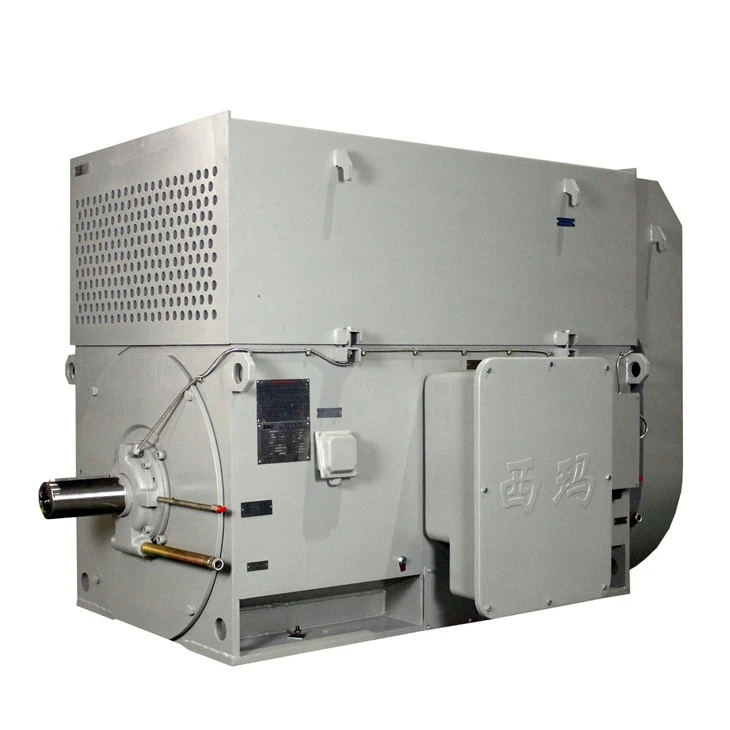

Aircooled Motor

This series of aircooled motor is a new generation product based on the company's long-term stable high-voltage three-phase asynchronous motor’s experience of design and manufacturing, combined with the latest international standards. This series of high and low voltage three-phase asynchronous motor has many advantages, such as compact structure, light weight, high efficiency, energy saving, low noise, low vibration, high reliability, long service life, easy installation and maintenance, etc. The motors can operate when ambient temperature is -15℃~+40℃; the altitude ≤1KM; and monthly average air humidity ≤90% (If temperature is 25℃).

Send Inquiry

Description

Technical Parameters

Brief Introduction

The technical parameters of high voltage aircooled motor usually include rated power, rated voltage, rated current, rotational speed, efficiency and so on. The following are some common examples of technical parameters:

When choosing aircooled motor, users should consider the motor's technical parameters, performance characteristics and after-sales service and other factors according to the specific application requirements to ensure that the most suitable products are selected. Through reasonable selection and use, the advantages of high-pressure water-cooled motors can be maximized, providing strong power support for the production and development of enterprises.

Main Technical Parameters

Frame	H630mm
Power Scope	1120kW~1600kW
Voltage	10kV
Frequency	50Hz, 60Hz
Number of Poles	8P
Speed	745rpm
Cooling Mechod	IC611
Protection Grade	IP55
Insulation Class	F(155℃)
Duty	S1
Mounting Type	IM B3
