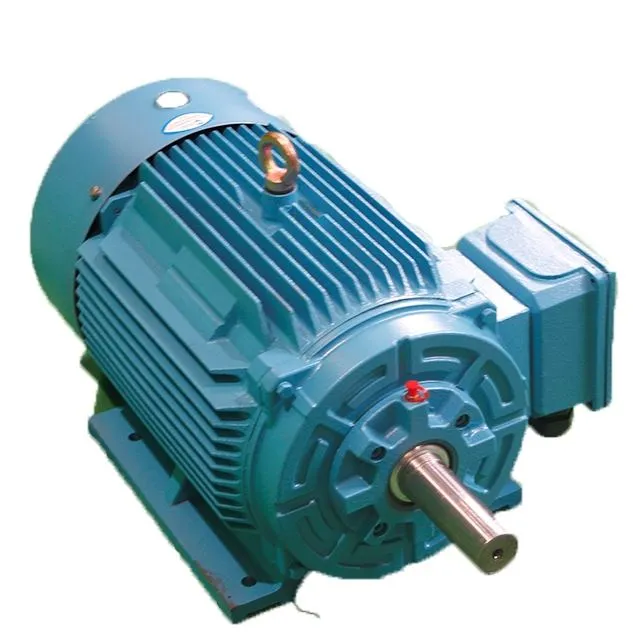

Low Voltage 3 Phase Motor 22KW
Description
Technical Parameters
Brief Introduction
This YE4 series low voltage 3 phase motor has the advantages of excellent performance, high efficiency, energy-saving, large temperature rise margin, long life, low vibration, excellent starting performance, good-looking appearance and high reliavility, which are commonly used to drive water pumps, fans, compressors, conveyors and other transmission machinery in energy conservation and environmental protection transformation projects, national water conservancy projects, etc.
Main Technical Parameters
|
Frame: |
H225 |
| Warranty: | 1 year |
|
Power Scope: |
22KW~45KW |
|
Voltage: |
380V/660V |
|
Frequency: |
50Hz, 60Hz |
|
Number of Poles: |
2P, 4P, 6P, 8P |
|
Connection: |
Delta/Y |
|
Cooling Method |
IC411 |
|
Protection Grade |
IP55 |
|
Insulation Class |
F(155℃) |
|
Duty: |
S1 |
|
Mounting Type |
B3 |
|
Standard: |
IEC |
|
Efficiency Grade: |
IE4 |
| Vibration： | ≤1.8mm/s |
| Ambient Temperature： | -15℃ ～ +40℃ |
| Altitude: | ≤1000m |
| Humidity: | Average monthly peak relative humidity is 90% |
Outline Dimensions
Motor Parameters
Applications
Chemistry
Power Station
Cement
Steel
 |
CHOOSE SIMO, CHOOSE QUALITY! |
