YXKK400-4 3 Phase Induction Motor Rpm 560kW

Title:

YXKK400-4  Three-phase Asynchronous Motor

Brief Introduction

The YXKK400-4 3 phase induction motor rpm  is a high-performance heavy-duty solution, specifically engineered to excel in demanding large-scale industrial scenarios. It is the preferred choice for critical sectors including power generation (driving boiler feed pumps and induced draft fans), mining (powering heavy-duty conveyors and ore crushers), petrochemicals (operating process pumps and compressors), and heavy manufacturing (supporting production line main drives)-all environments where uninterrupted operation, high load capacity, and resistance to harsh conditions are non-negotiable.

In terms of performance, this 3 phase induction motor rpm delivers exceptional power and stability: boasting a 560kW rated output, it operates on a 10000V AC supply at 50Hz, generating a steady 1485 r/min rotational speed. Its robust power profile ensures consistent torque delivery, even during 24/7 S1 continuous duty cycles, making it capable of driving high-load equipment that forms the backbone of industrial production. Additionally, it features a 93.9% energy efficiency rating (Energy Efficiency Level 2) and a 0.87 power factor, enabling efficient energy conversion and minimal power loss.

The core advantages of the YXKK400-4 are tightly aligned with its application scenarios. First, its rugged environmental adaptability: equipped with 155-class high-temperature insulation and an IP55 protection rating, it effectively resists dust, water splashes, and high temperatures, thriving in the dusty, humid, or high-heat conditions common in mining and petrochemical sites. Second, long-term reliability: premium NU224ECM (drive end) and 6224/C3 (non-drive end) bearings reduce friction and maintenance needs, extending service life and minimizing downtime-a critical benefit for continuous-production industries. Third, cost-effectiveness: its high energy efficiency translates to significant long-term energy savings, while its 3470kg frame (IM B3 mounting) ensures stable operation under heavy loads, adapting seamlessly to altitudes up to 1000m and ambient temperatures up to 40°C.

CE-certified (serial number D26011027001, Jan 2026) and backed by SIMO 's stringent quality control, this 3 phase induction motor rpm integrates superior performance with scenario-specific advantages, serving as a dependable power core for industrial systems that demand uncompromising performance and operational efficiency.

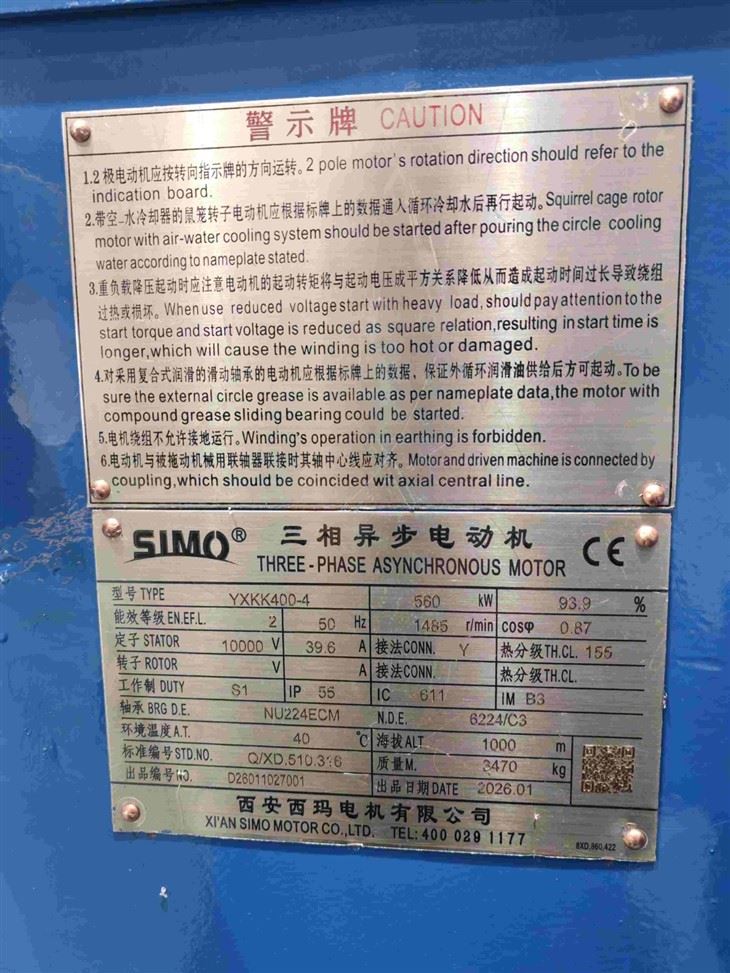

Main Technical Parameters

Why choose Simo Brand YXKK series of Motor?

Power & Efficiency: 560kW output paired with 93.9% efficiency (Energy Level 2) balances high performance and low energy costs.

Durability: IP55 protection, 155-class insulation, and robust bearings enable reliable S1 continuous duty in harsh industrial environments.

Versatility: Ideal for heavy-load equipment (pumps, fans) across sectors like power/mining, backed by Xi'an SIMO's trusted manufacturing quality.

Production Details

Frame

• Box structure frame, easy for maintaining and installation

• Flexible dimensions

• Customizable outlook

---

Stator

• 99.9% pure copper winding ensures the output power and efficiency

• Excellent insulation system with 5 more processing flows

• All the windings are fitted in by handwork to ensure all slots are full and avoid any possible winding flaw.

---

Rotor

• Aluminum casting rotor with high quality silicon steel rotor core to assure induction efficiency

• Copper bar rotor is available for YKK motor

• Pprecisely machined shafts with good capacity of  toughness

---

Testing

• All motors must pass the testing before painting and packaging

• We regularly test existing and new products to ensure quality.

---

Package and delivery

• All motors will be packaged well before delivery

• Plastic cover inside, vacuum tin foil outer and then solid wood box

---



Applications

YXKK400-4 HV Motor is the widely used in many general industries, such as blowers, pumps, crushers, cutting machines, and many other heavy machines. For more application details, contact us.

Cement

Power Station

Water conservation

Steel
