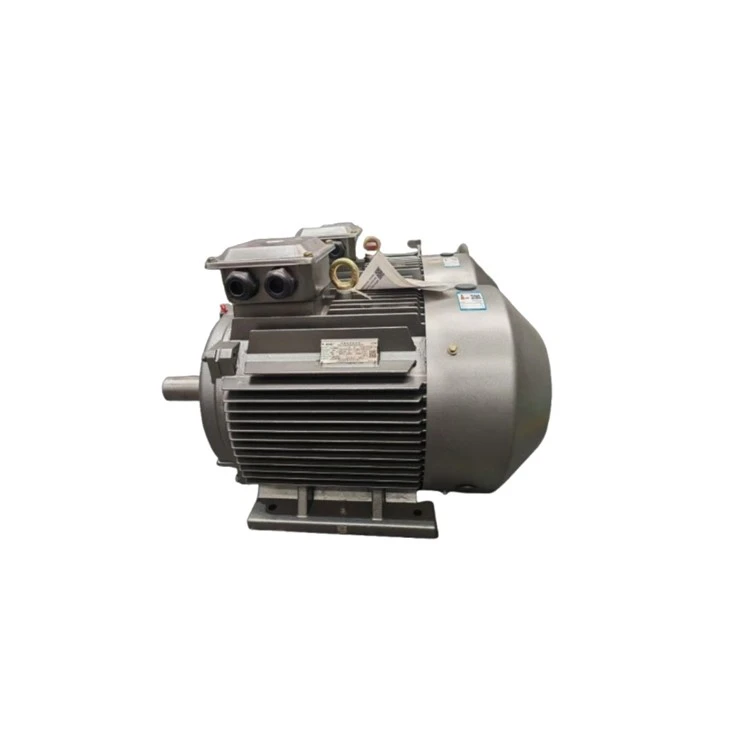

YE3-225M-4 Three-phase Asynchronous 400v Motor 45kw

Xi’an Simo Motor Co., Ltd. is one of the leading manufacturers and suppliers of YE3-225M-4 Three-phase Asynchronous 400v Motor 45kw in China. With abundant experience, we are committed to providing high quality customized products with competitive price. We warmly welcome you to buy bulk premium products made in China here and get quotation from our factory.

Brief Introduction

The YE3 series high-efficiency three-phase asynchronous motor is a premium energy-saving motor product developed and manufactured by Xi'an SIMO Motor Co., Ltd., which fully complies with international and domestic high-efficiency motor standards. This 400v motor adopts optimized electromagnetic design and advanced manufacturing processes, achieving outstanding energy efficiency performance while maintaining stable mechanical properties. It is widely applied in general industrial equipment such as fans, water pumps, compressors, conveyors and machine tools, serving as the core power source for various production systems.

Taking the YE3-225M-4 model shown on the nameplate as an example, this 400v motor has a rated power of 45 kW, rated voltage of 400 V, rated current of 80.2 A, and rated speed of 1485 r/min under 50 Hz power supply conditions. Its power factor reaches 0.85, with a high efficiency of 94.2%, which effectively reduces power consumption during long-time continuous operation and cuts down enterprise electricity costs. The motor adopts Class 155 thermal insulation system and IP55 protection grade. The robust enclosure can prevent dust accumulation and water splash intrusion, adapting to harsh working environments in factories. The cooling mode is IC411, with independent fan forced air cooling, ensuring stable temperature rise even under full-load continuous operation.

The motor adopts B3 mounting form, with bearings of model 6313C3, which have low friction loss, good vibration resistance and long service life. The whole machine weighs 335 kg, with solid cast iron frame structure, high rigidity and excellent vibration damping performance. The motor winding is made of high-quality insulating materials, which can withstand thermal aging and voltage impact. The design effectively reduces vibration and operating noise, improving the working environment of the production site. The motor connection method is delta connection, which is convenient for on-site wiring and matching with soft starter and frequency converter.

SIMO YE3 series motors have obtained CE certification, meeting the requirements of European market access. Strict quality control is implemented throughout the whole production process from raw material incoming inspection to finished motor test. Every motor will undergo comprehensive tests including no-load test, load test, insulation resistance and vibration detection before delivery to guarantee stable and reliable performance.

Compared with ordinary standard motors, YE3 high-efficiency motors reduce iron loss and copper loss by optimizing the stator and rotor core structure and using high-performance silicon steel sheets. As a reliable 400v motor, although the initial purchase investment is slightly higher, the energy-saving benefit is prominent in long-term operation. It helps industrial users realize energy conservation and emission reduction, and meets the requirements for energy efficiency upgrading of industrial equipment.

This series of motors features simple structure, convenient maintenance and strong interchangeability. It can directly replace old low-efficiency motors. Whether for new project supporting or energy-saving renovation of old equipment, it is a reliable power choice. With stable quality and complete specifications, SIMO YE3 motors have been widely recognized in domestic and overseas industrial markets.

Main Technical Parameters

Production Details

Frame

• Compact and robust iron casting frame

• Universal IEC installation dimensions available

• Customizable outlook and dimensions

---

Stator

• 99.9% pure copper winding for stator to ensure the output power and efficiency

• Excellent insulation system with 5 more processing flows

• All the windings are fitted in by handwork to ensure all slots are full and avoid any winding flaw.

---

Rotor

• Aluminum casting rotor with high quality silicon steel rotor core to assure induction efficiency

• Well and precisely machined shafts with good capacity of strength and toughness

---

Testing

• All motors must pass the piece testing before painting and packaging

• Type tests will be regularly performed for each series, more often for new developed series and variants.

---

Package and delivery

• All motors will be packaged well before delivery

• Plastic cover inside, vacuum tin foil outer and then solid wood box

---



Applications

This series of motor is commonly used to drive water pumps, fans, compressors, conveyors and other transmission machinery in energy conservation and environmental protection transformation projects, national water conservancy projects, etc.

Power

Pump

Sugar

Water conservation

CHOOSE SIMO, CHOOSE QUALITY!
