Three Phase Cage Induction Motor Failure Analysis And Solutions
Aug 04, 2025
Leave a message

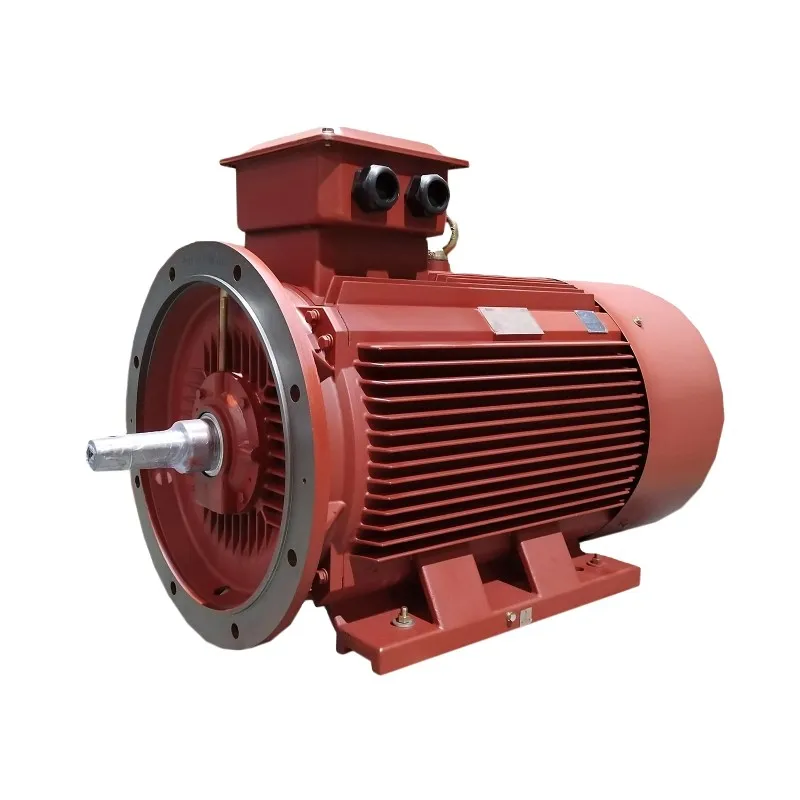

Mechanical failures in three phase cage induction motor, notably stator-rotor rub and bearing seizure, pose severe operational risks ranging from abnormal vibration to catastrophic winding burnout. This analysis delineates root causes and mitigation strategies for these critical failures.
Stator-Rotor Rub Pathogenesis
Direct metal contact occurs due to localized airgap collapse, primarily stemming from:
Component Dimensional Deviations: Excessive coaxiality errors (>0.05mm) in frame/end-shield mating surfaces or rotor eccentricity (>0.03mm runout).
Assembly Defects: Bearing installation misalignment (>0.5°) or stator core stacking offsets (>0.2mm accumulated deviation).
Bearing Degradation: Radial clearance exceeding 0.1mm (beyond standard 0.03–0.08mm for deep-groove bearings) induces dynamic rotor eccentricity under electromagnetic forces.
Bearing Seizure Triggers
Sudden rotational lock typically arises from:
Lubrication Failure: Grease oxidation (>90°C) or contamination causing lubricant film rupture.
Mechanical Overload: Belt over-tension or shaft misalignment (>0.05mm) generating abnormal radial forces.
Material Deficiencies: Sub-hardened bearing races (HRC<58) or thermoplastic cage embrittlement.
Failure Escalation Mechanism
Rub-induced friction spikes temperatures beyond 500°C, carbonizing insulation and triggering inter-turn shorts. Concurrent bearing damage amplifies vibration, accelerating airgap asymmetry and winding failure. Ground faults may generate 10× rated current, risking fire hazards.
Preventive and Corrective Protocols
Precision Manufacturing: Enforce ≤0.03mm coaxiality tolerances and ≤0.02mm rotor runout per ISO 1940 standards. Implement coordinate measuring machine (CMM) verification.
Assembly Control: Use induction heaters for interference-fit bearings (h6/H7 tolerance). Grind stator bores for ≤0.05mm roundness.
Condition Monitoring: Embed Class A PT100 sensors with staged alerts (70°C warning / 85°C shutdown). Correlate temperature spikes (>5°C) with 20% vibration increases for early seizure detection.
Maintenance Regimen: Quarterly airgap checks (≤5% deviation tolerance) and monthly grease replenishment (≤70% cavity fill volume) using high-temperature lithium complexes.
Operational Impact Mitigation
For minor rub damage, polish affected surfaces and recalibrate airgap; severe cases require core replacement. Bearing seizure demands immediate shaft inspection (re-chroming if scratches exceed 0.02mm depth) and oil chamber sanitization. Field data confirms vibration reductions from 0.12mm/s to 0.04mm/s post-rectification. Proactive three phase cage induction motor health management slashes failure rates by over 90%, optimizing lifecycle productivity
