How to measure the vibration of a high power motor?

Hey there! As a supplier of high power motors, I've seen firsthand how crucial it is to measure the vibration of these beasts accurately. Vibration can tell you a lot about the health of a motor, and catching issues early can save you a ton of time and money in the long run. So, let's dive into how you can measure the vibration of a high power motor.

Why Measure Vibration?

Before we get into the how, let's talk about the why. Vibration in a high power motor can be a sign of various problems, such as misalignment, unbalance, bearing wear, or even electrical issues. By measuring the vibration, you can detect these problems early on and take corrective action before they lead to a breakdown. This not only reduces downtime but also extends the lifespan of your motor.

Tools for Measuring Vibration

There are several tools you can use to measure the vibration of a high power motor. Here are some of the most common ones:

Vibration Sensors

Vibration sensors are the most popular tool for measuring motor vibration. They work by detecting the movement of the motor and converting it into an electrical signal. There are different types of vibration sensors, including accelerometers, velocity sensors, and displacement sensors. Accelerometers are the most commonly used type because they can measure both the amplitude and frequency of the vibration.

Vibration Meters

Vibration meters are handheld devices that can measure the vibration level of a motor. They are easy to use and provide a quick and accurate measurement of the vibration. Some vibration meters also come with additional features, such as data logging and analysis capabilities.

Laser Alignment Tools

Laser alignment tools are used to measure the alignment of the motor and its connected equipment. Misalignment can cause excessive vibration, so it's important to ensure that the motor is properly aligned. Laser alignment tools use lasers to measure the position of the motor and its connected equipment and provide a visual indication of the alignment.

Measuring Vibration

Now that you have the right tools, it's time to start measuring the vibration of your high power motor. Here are the steps you need to follow:

Step 1: Choose the Right Measurement Points

The first step is to choose the right measurement points on the motor. You should measure the vibration at the bearing locations, as well as at other critical points on the motor, such as the coupling and the base. Make sure to measure the vibration in both the horizontal and vertical directions.

Step 2: Set Up the Measurement Equipment

Once you have chosen the measurement points, it's time to set up the measurement equipment. If you are using a vibration sensor, make sure to mount it securely on the motor. If you are using a vibration meter, turn it on and select the appropriate measurement mode.

Step 3: Take the Measurements

Once the measurement equipment is set up, it's time to take the measurements. Start the motor and let it run at its normal operating speed. Take the measurements at each measurement point and record the results. Make sure to take multiple measurements at each point to ensure accuracy.

Step 4: Analyze the Results

Once you have taken the measurements, it's time to analyze the results. Compare the vibration levels to the manufacturer's specifications or industry standards. If the vibration levels are higher than the recommended levels, it could indicate a problem with the motor. You may need to perform further tests or inspections to determine the cause of the problem.

Interpreting the Results

Interpreting the results of the vibration measurements can be a bit tricky, but there are some general guidelines you can follow. Here are some of the things to look for:

Amplitude

The amplitude of the vibration refers to the magnitude of the vibration. A high amplitude can indicate a problem with the motor, such as unbalance or misalignment. The amplitude is usually measured in millimeters per second (mm/s) or inches per second (in/s).

Frequency

The frequency of the vibration refers to the number of times the vibration occurs per second. Different types of problems can cause different frequencies of vibration. For example, unbalance typically causes a vibration frequency that is equal to the rotational speed of the motor, while misalignment can cause a vibration frequency that is twice the rotational speed of the motor.

Phase

The phase of the vibration refers to the relationship between the vibration at different points on the motor. By comparing the phase of the vibration at different points, you can determine the cause of the vibration. For example, if the vibration at two points on the motor is in phase, it could indicate a problem with the motor itself. If the vibration at two points is out of phase, it could indicate a problem with the coupling or the connected equipment.

Common Causes of Vibration

There are several common causes of vibration in high power motors. Here are some of the most common ones:

Unbalance

Unbalance occurs when the mass of the motor is not evenly distributed around the axis of rotation. This can cause the motor to vibrate excessively, especially at high speeds. Unbalance can be caused by a variety of factors, such as manufacturing defects, wear and tear, or improper installation.

Misalignment

Misalignment occurs when the motor and its connected equipment are not properly aligned. This can cause the motor to vibrate excessively, especially at the coupling. Misalignment can be caused by a variety of factors, such as improper installation, thermal expansion, or foundation movement.

Bearing Wear

Bearing wear occurs when the bearings in the motor start to wear out. This can cause the motor to vibrate excessively, especially at the bearing locations. Bearing wear can be caused by a variety of factors, such as lack of lubrication, overloading, or contamination.

Electrical Issues

Electrical issues can also cause vibration in high power motors. For example, a short circuit in the motor windings can cause the motor to vibrate excessively. Electrical issues can be caused by a variety of factors, such as overheating, moisture, or insulation breakdown.

Preventing Vibration

Preventing vibration in high power motors is essential to ensure their reliable operation. Here are some tips to help you prevent vibration:

Proper Installation

Make sure to install the motor and its connected equipment properly. This includes ensuring that the motor is properly aligned, the coupling is properly installed, and the foundation is stable.

Regular Maintenance

Perform regular maintenance on the motor, including lubrication, inspection, and cleaning. This can help prevent bearing wear, unbalance, and other problems that can cause vibration.

Use High-Quality Components

Use high-quality components, such as bearings, couplings, and belts. This can help ensure the reliable operation of the motor and reduce the risk of vibration.

Monitor Vibration

Monitor the vibration of the motor regularly using a vibration sensor or a vibration meter. This can help you detect problems early on and take corrective action before they lead to a breakdown.

Conclusion

Measuring the vibration of a high power motor is an important part of ensuring its reliable operation. By using the right tools and following the right procedures, you can accurately measure the vibration of the motor and detect problems early on. Remember to choose the right measurement points, set up the measurement equipment properly, take multiple measurements, and analyze the results carefully. If you have any questions or need further assistance with measuring the vibration of your high power motor, feel free to contact us to discuss your specific needs and requirements.

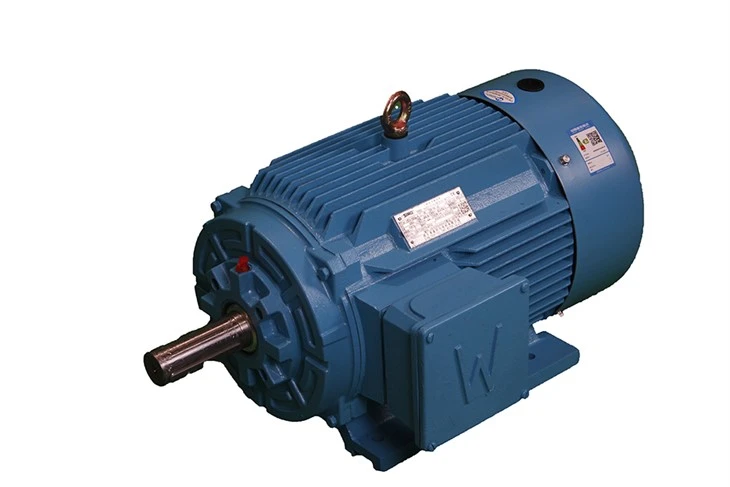

We offer a wide range of high power motors, including the Bearing DE NDE and the YVFE4 Speed Adjustable Motor. Our motors are designed to meet the highest standards of quality and performance, and they are available in a variety of sizes and configurations to suit your needs. We also offer motors with IE3 Efficiency, which can help you save energy and reduce your operating costs.

If you are interested in purchasing a high power motor or have any questions about our products, please don't hesitate to contact us. We would be happy to discuss your specific needs and requirements and help you find the right motor for your application.
