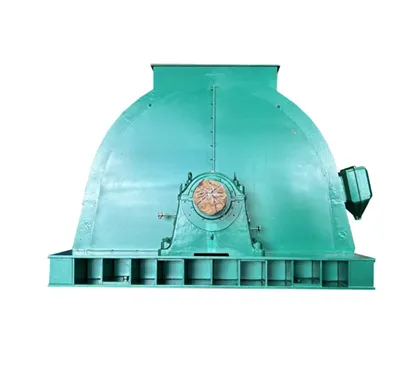

What Are Permanent Magnet Synchronous Motors? Core Advantages And Principle Popularization

In fields such as industrial automation and new energy vehicles, Permanent Magnet Synchronous Motors (PMSM) have become mainstream power equipment. With the advantages of high efficiency, energy saving and small size, they have gradually replaced traditional asynchronous motors and become the "power heart" of various industries. Many people have a partial understanding of its principles and advantages. Today, we will use popular language to help you understand the core logic of PMSM.

A PMSM is a synchronous motor that uses permanent magnets to establish a magnetic field. Its core difference from traditional motors lies in the excitation winding design. It eliminates the consumption of excitation current, fundamentally reduces power loss and improves operating efficiency. Its working principle is not complicated: the stator winding is connected to three-phase symmetric current to generate a rotating magnetic field, and the permanent magnets on the rotor are attracted by the magnetic field and rotate synchronously with the stator rotating magnetic field, realizing the efficient conversion of electrical energy to mechanical energy. The rotor speed is completely consistent with the stator rotating magnetic field speed, which is the origin of "synchronization".

Compared with traditional asynchronous motors, permanent magnet synchronous motors have obvious advantages. First, high efficiency and energy saving: the efficiency is 2%-8% higher than that of ordinary asynchronous motors, the power factor is also significantly improved, and a lot of electricity costs can be saved in long-term operation. Second, high power density: under the same power, it is smaller in size and lighter in weight, suitable for scenarios with limited space. Third, stable operation: the brushless and slip ring-free design reduces wear, lower noise, stronger reliability, and fast dynamic response speed, suitable for high-precision control needs.

At present, the core permanent magnet materials of permanent magnet synchronous motors are mainly neodymium-iron-boron, samarium-cobalt, etc. Among them, neodymium-iron-boron magnetic steel has become the most widely used material due to its high magnetic energy product and cost performance. With the upgrading of technology, its control strategies have become increasingly mature. The two methods of vector control and direct torque control meet the different needs of high-precision steady-state control and fast dynamic response respectively, further expanding its application scope and becoming the core power equipment for energy conservation and consumption reduction in the new era.
